Hobbywing QuicRun 1080 Waterproof Brushed 80A ESC w/ Program Card

New product

USD 55.00

More info

Features:

  • Water-proof and dust-proof, suitable for all weather races.
  • Small size, with built-in capacitor module.
  • 100% Waterproof
  • 15 programmable parameter items
  • PWM Frequency: 1K/2K/4K/8K/16K Adjustable
  • Freewheeling (DEO) capability
  • Drag brake rate in 9 levels (adjustable)
  • Electronic switch
  • Aluminum case for great heat dissipation
  • Great current endurance capability.
  • Great built-in BEC output capacity.
  • Automatic throttle range calibration, easy to use.
  • Multiple protections:
    • Over Voltage Protection
    • Low voltage cut-off protection for battery
    • Over-heating protection
    • Throttle signal loss protection, and much more
  • Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America

Specifications:
Waterproof:
Yes
Dual Mode: No
Fwd Cont. / Peak: 80A / 400A
Rev Cont. / Peak: 30A / 180A
Car Applicable: 1/8 - 1/10 Rock Crawler and Tank or Boat
Motor Limit: Brushed Motors 540/550/775 Series 2S LiPo or 6S NiMH: ≥10T orRPM<[email protected]; 3S LiPo or 9S NiMH: ≥16T or RPM<[email protected]
Battery: 2-3S LiPo or 5-9S NiMH
BEC Output: 6V/7.4V @ 3A (switch mode)
PWM Frequency: Adjustable 1K/2K/4K/8K/16K
Wires: 14AWG-200mm w/ XT60 Connector
Size/ Weight: 36.5(L)* 32(W)*18(H) (without fan)
External Program Port: External Program Port Available

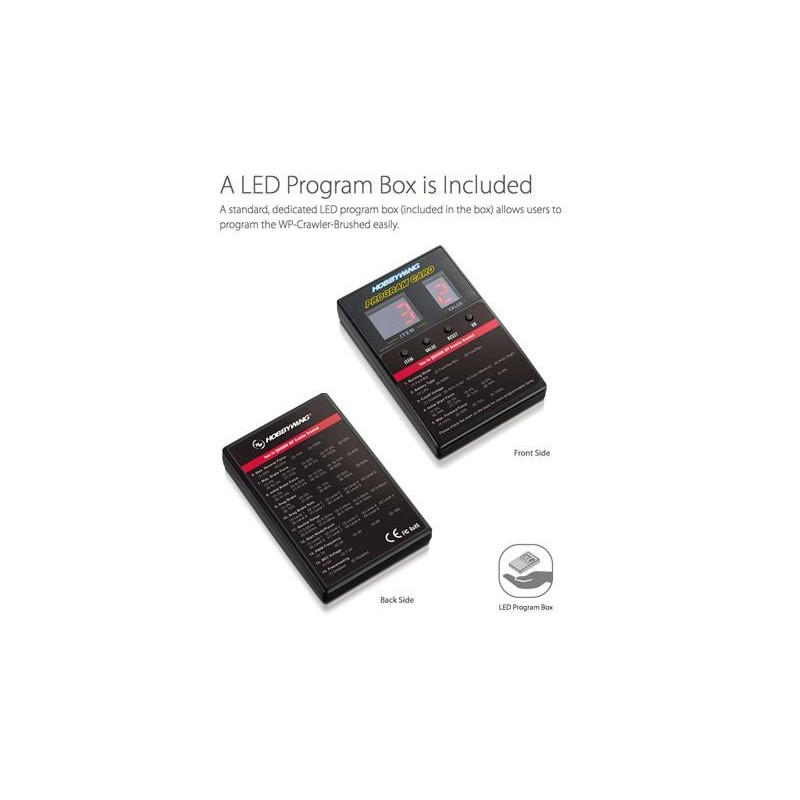

Programming: LED Program card
Cooling Fan: Without cooling fan
Weight: 58.5g
