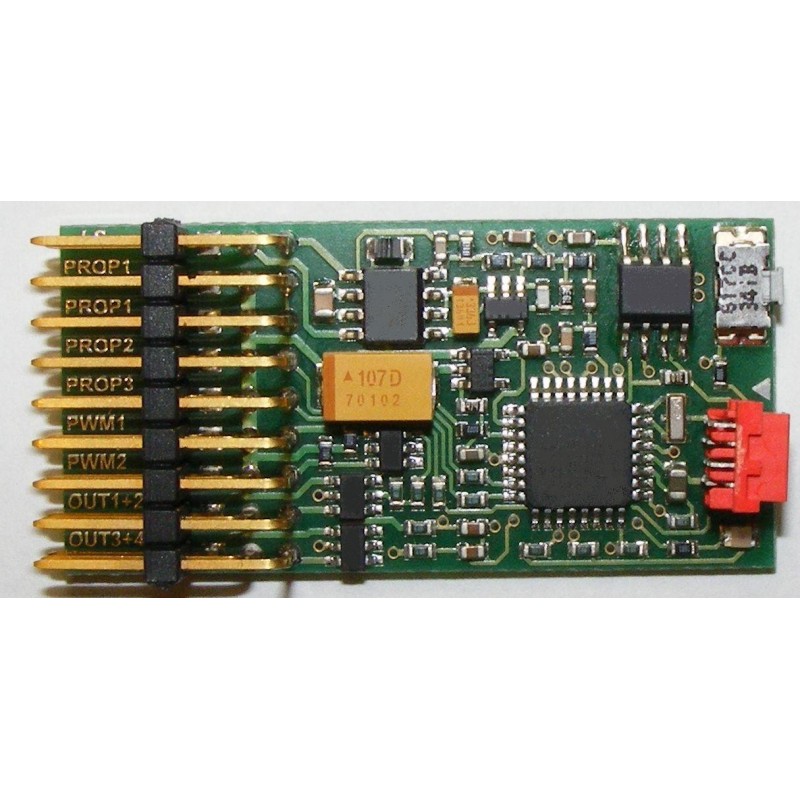

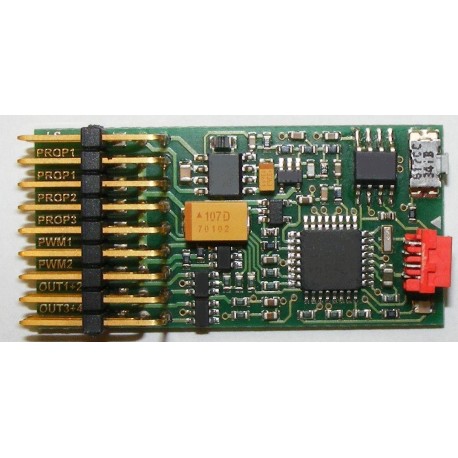

Sound Module for Truck/Tank/Airplane/Offroad/Car

This soundunit is developed specially for electric powered Truck/Tank/Airplanes or other models having a lot of functions.

In comparison to other competitors, you can use any sound available in the download section for FREE.

Features:

• Fully customer programmabel, free of charge sofware Download
• Large FREE OF CHARGE sound libraries of original recordings (f.e. Corsair, ME109, Spitfire, Cessna, dif. Trucks)
• Soundquality 22KHz
• 16Mbit Soundmemory, enough for 93s of soundrecordings
• Internal 1,2W amplifier at 8 Ohm speakers
• External high power amplifiers available
  (f.e.. 2x40W at 2Ohm and 12V OR 50W at 8 Ohm and 50V supply)
• Up to 6 electronic switching outputs
  - activated by sound (f.e. Muzzle flashing with MG sound) or independant operation
  - permanent, momentary or flashing mode adjustable
  - direction flashing
• Externel smoke generator for exhaust simulation (optional). Not recommended for aircrafts !
• Twodigital inputs for triggering sounds by a external signal
  (f.e. Screaming tires at touch down, triggered by a switch)
• Twoservo signal outputs, f.e. for retractable landing gears
• All connections done by plugs, no solderwork necessary
• Receiver signals are used for speedinformation,  this allows brushless or DC Motor usage
• All connections horizontally -> full isolation and protection by shrinked plastic tube possible
• Fully assembeled in SMD technology (no heavy, vibration sensitive components)
• All wires included
• Very little dimensions and weight
• USB or RS232 programing interface by external adaptor (optional)
• Can be fully configured by free of charge PC software
  - you can make your own soundcreation or using the original sounds file
  -Firmware update, your unit can be updated by your own with the latest software
• Plays two sounds simultaneously (engine plus a special sound)

Technical Datas:
Supplyrange:             3,5 – 12V (from receiver)
Internal amplifier:    1,2W at 8 Ohm and 5V supply
Switching outputs:     Minus switching, max. 12V/0,5A each
Dimensions:              only 55x25x10mm !
Weight:                    only 6g !
